The BYU-MERS "sir" image format was developed by the Brigham Young University MERS Laboratory to store images of the earth along with the information required to earth-locate the image pixels.

A "sir" file consists of one or more 512 byte headers containing all the information required read the remainder of the file and the map projection information required to map pixels to lat/lon on the Earth surface.

Image pixel values are generally stored as 2 byte (high order byte first) integers though can be stored as bytes or IEEE floating point. The latter is not portable to all machines and so is not recommended but is available. Scale factors to convert the integer or byte pixel values to native floating point units are stored in the file header.

The origin of the images is in the lower left corner of the displayed image. The earth location of a pixel is identified with its lower-left corner.

The standard sir format supports a variety of image projections including:

• Rectangular array (no projection)
• A rectangular lat/lon array
• Two different types of Lambert equal-area projections which can be use in both non-polar and polar projections
• Polar stereographic projections
• EASE grid polar projection with various resolutions
• EASE global projection with various resolutions


SIR image format links:

• site map(html)
• file site documentation (txt)
• file site to download source code from

Note: standard source code in C, Fortran, IDL, PVWAVE, and Matlab to read/write/display SIR image files are available at this location. Sample files and utilities to convert SIR image files to other formats are also available at this location.

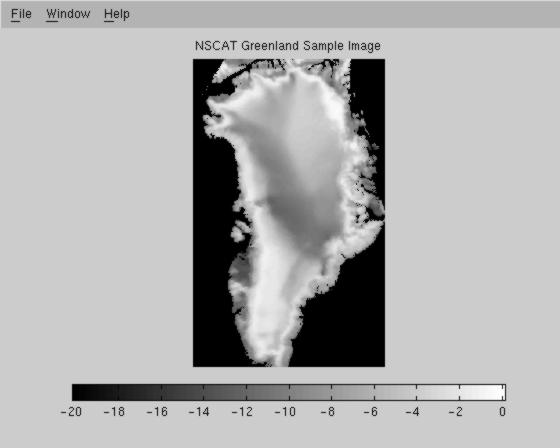

• Sample Greenland image (matlab showsir output converted to jpeg - 17kB)
