YSAR IMAGES

The BYU Synthetic Aperature Radar Systems

YSAR ISRAEL IMAGES

YSAR was used over four archeological sites in Israel in Sept. 1996. The radar uses a low enough frequency that we hoped to penetrate the ground a short distance to see walls, foundations, or other large objects. This information would aid in excavation. Images and site descriptions are provided in the links below.

Tel Safi

Qumran

Zippori National Forest

Tel Micnah

YINSAR TEST IMAGES

First Parking-Lot Test

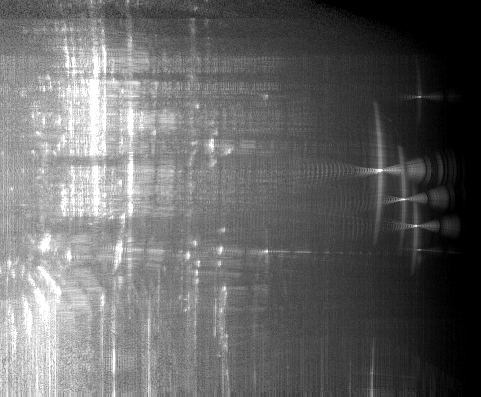

The first YINSAR system tests were performed in the parking lot of Cougar Stadium at Brigham Young University. The stadium can be seen in the far range (left side of the image), and three corner reflectors (test targets) and four light poles can be seen in the near range.
Pass 1343 (201k)

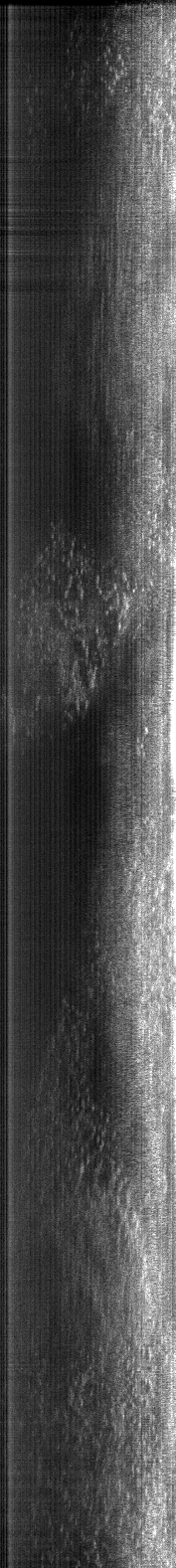

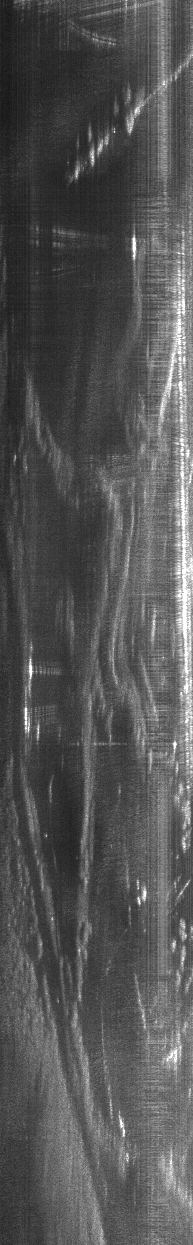

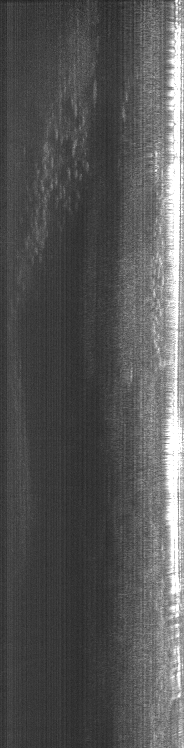

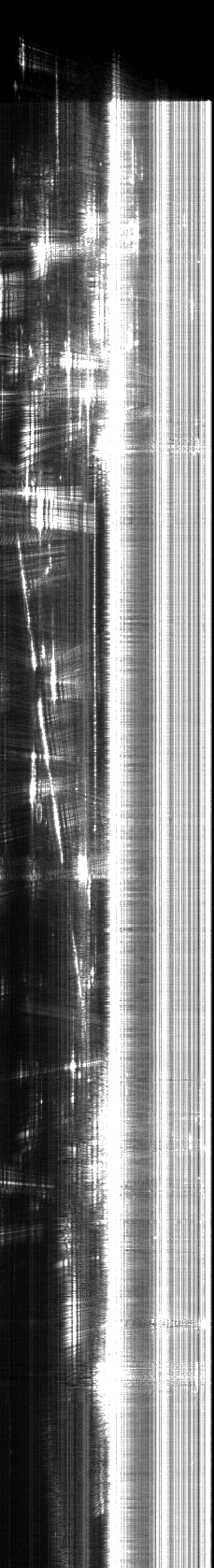

A later system test was performed in Spanish Fork Canyon. Here are some of those images: Pass 1611 (300k) Pass 1621 (300k) Pass 1644 (300k) Pass 1646 (300k)

NOTE ON IMAGE INTERPRETATION AND NAMING
